Full Frame
Megapixel Cameras

1.6, 2.5, 4 and 8 Megapixel 12 bit digital cameras for Black & White image captures and 12 bit color digital cameras for color image captures. These cameras are actually digital imaging systems which include both a digital camera head, a digital PCI frame grabber, associated Windows 95/98/NT software and cables as well.

fullframe1.jpg 400*227
clrcamb.jpg 275*196

Complete Systems

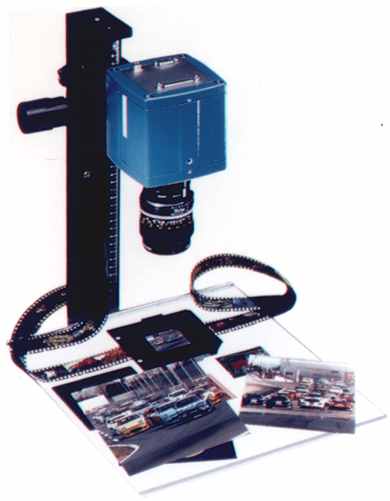

This family of digital imaging systems consists of a DIGITAL CAMERA HEAD, a DIGITAL-PCI FRAME GRABBER and the associated SOFTWARE. Cameras are large format (close to 35 mm films) with high resolution and highly sensitive progressive scan CCDs. This camera is also versatile, accurate, fast, flexible, easily controllable, user friendly and affordable. Camera's performance is ideally suited to applications in photo finishing. These cameras can also be used for medical, industrial and scientific needs as well.

Main Features

  • High resolution (1.6, 2.5, 4 or 8 Megapixels)
  • Large format Progressive scan CCD sensors
  • High sensitivity even in the near Infrared
  • Compatible with Black and White or 3-Shot Color imaging
  • 12 bit or 3x12 bit image capture and storage
  • High signal to noise ratio (> 66dB)
  • 3 or 10 frames per second (full resolution)
  • Blooming Protection
  • Live video preview up to 18 or 43 frames per second (pixel binning)
  • Complete camera control through RS232 serial port
  • PCI Digital Frame Grabber
  • 12 bit to 12 bit input LUT
  • Real time image display (black/white modes)
  • WINDOWS NT software (hardware settings, image grab, display and corrections)
clrcam2.jpg 390*501
Model Pixel Count Pixel size um Fill factor Sensitive area mm Scanning
Model 1.6M 1536 x 1024 19.5 x 19.5 100% 30 x 20 Progressive
Model 2.5M 1840 x 1360 19.5 x 19.5 100% 36 x 26.5 Progressive
Model 4.0M 2048 x 2048 19.5 x 19.5 100%
Model 8.0M 3500 x 2400 17.5 x 17.5 100% 36 x 26.5 Progressive

Model 1.6M & Model 2.5M

  Full frame   2x2 pixel binning   4x4 pixel binning   8x8 pixel binning
Model 1.6 M 2.5 M 1.6 M 2.5 M 1.6 M 2.5 M 1.6 M 2.5 M
Responsivity R R 4R 4R 16R 16 R 64R 64 R
Pixel count 1536x1024 1840x1360 768x512 920x680 384x256 460x340 192x128 230x170
Frames/sec 10 3 17.5 5.5 29 10 43 18

Model 4.0M & Model 8.0M

  Full frame   2x2 pixel binning   4x4 pixel binning   8x8 pixel binning
Model 4 M 8 M 4 M 8 M 4 M 8 M 4 M 8 M
Responsivity R R 4R 4R 16R 16R 64R 64R
Pixel count 2048x2048 3500x2300 1024x1024 1750x1150 512x512 875x575 256x256 437x287
Frames/sec 4.3 NA 8.2 NA 14.8 NA 25.1 NA
